1 head ROPP capping machine

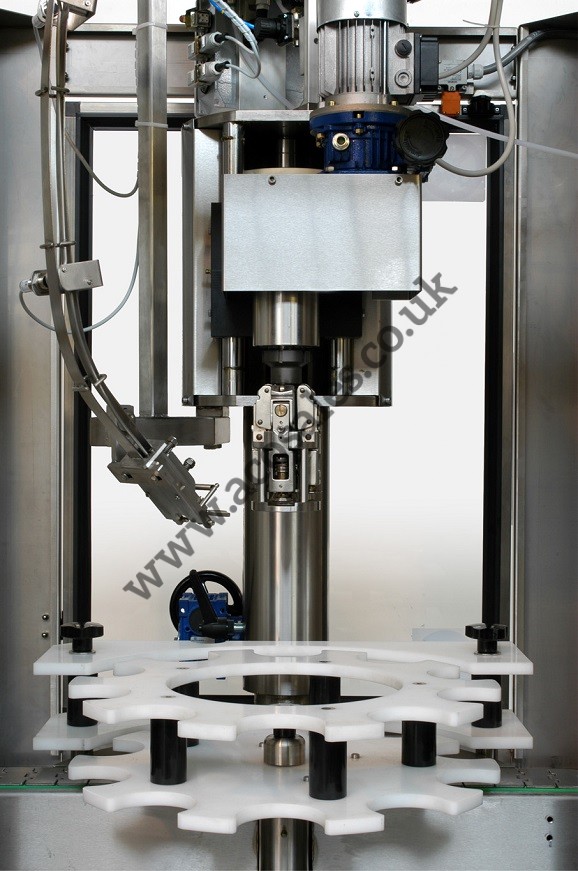

ACO AUTOCAP single head ROPP capping machine

Automatic inline capping machine for closing ROPP caps on to bottles

Direction: Left to right or right to left, Mains Power req: 440v 3ph 50hz 1.1kw, Compressed air req: 150 lpm at 6 bar

Output: Upto 2800 Bph

Stainless steel base mounted on adjustable floor levellers for easy alignment

Bearing frame and all surface components manufactured in AISI 304 stainless steel

Manual height adjustment via handle on column

Inverter controlled speed variation for machine, head speed and cap hopper

Automatic start photocell

Automatic stop photocell in case conveyor is full at exit

Caps in chute photocell, machine will not work if there are no caps present on the chute

4 roller closing head for aluminium ROPP caps

465mm diameter 10 pocket starwheel

Multi-functional HMI TOUCH SCREEN and control panel with 24 volt auxiliary commands

Automatic cap feeder, chute and applicating head

Electrical socket for optional elevator feed

Alarm warning light and acoustics

Safety guarding with interlock devices

CE mark, manual and operating handbook
