Inline large bottle capping machine

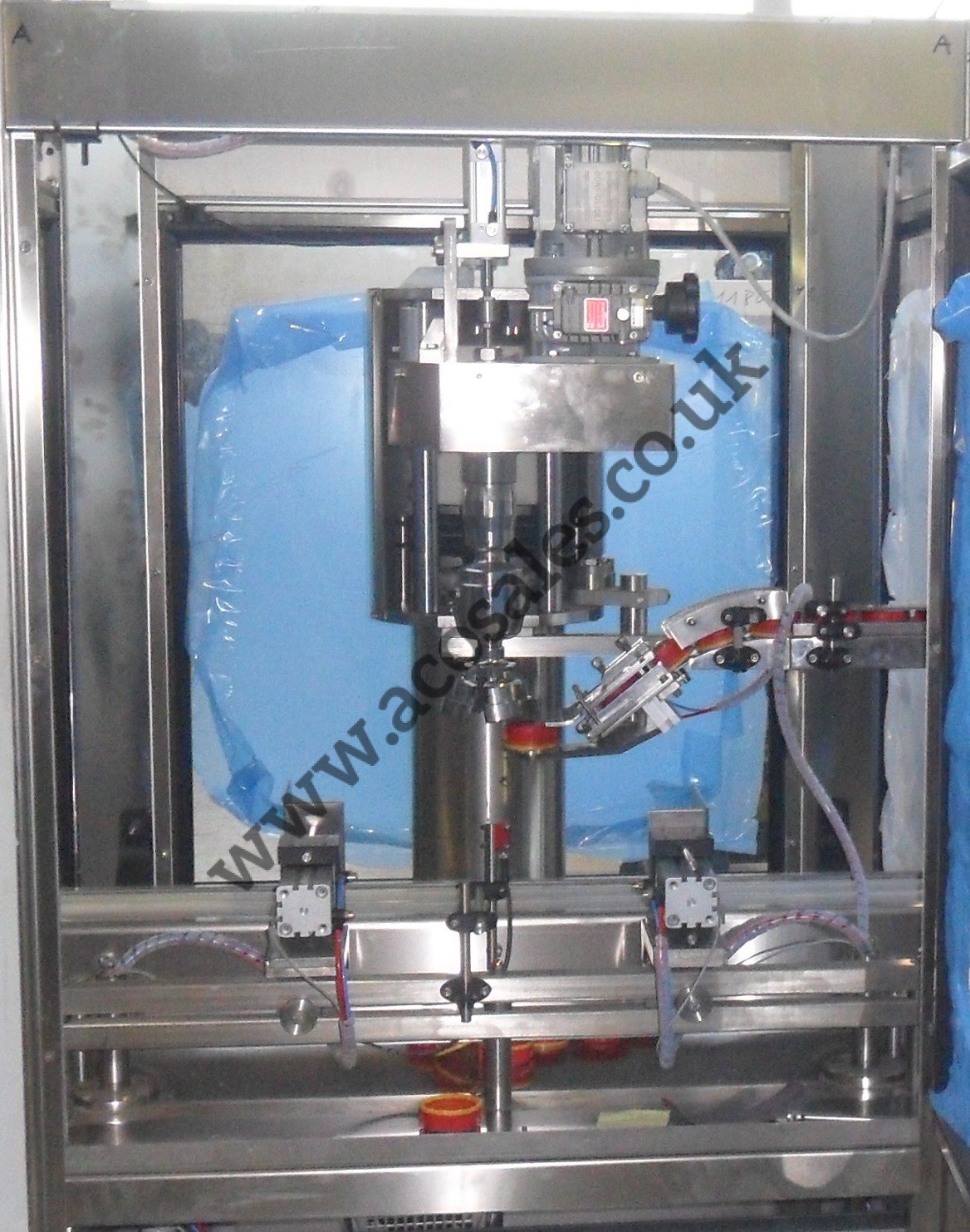

Inline automatic large bottle capping machine Autocap1i

N. 01 Single head inline capping machine Mod. AUTOCAP1i Suitable to close glass/PET/HDPE bottles with pre-threaded or press-on caps by single head turret; complete with accessories to work one cap size, pick and place, automatic cap feeding system Ø500/600, electric panel (with electric power 230/400v 50hz and auxiliary services at 24Vdc), conveyor belt with chain in S/S AISI 304, and all necessary parts, projected and built in accordance with the latest EEC regulations.

Direction: Inline, Mains Power req: 440v 3ph 50hz 1.1kw, Compressed air req: 150 lpm at 6 bar, Output: Upto 1000 Bph
Machine Dimensions: 1200 x 1400 x 2100mmH + cap sorter + conveyor
Stainless steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in AISI 304 stainless steel
Manual height adjustment
Speed variation for machine, head speed and cap hopper
Automatic start photocell
Automatic stop photocell in case conveyor is full at exit
Caps in chute photocell, machine will not work if there are no caps present on chute
Hysteresis Magnetic clutch capping head for screw caps
Pick & place cap system
Inline pneumatic infeed / outfeed bottle gates
Multi-functional SIEMENS HMI TOUCH SCREEN with PLC control panel with 24-volt auxiliary commands
Motors, gears and variators: Motovario
Pneumatic equipment: SMC
Automatic cap feeder, chute and applicating head
Electrical socket for optional elevator feed
Alarm warning light and acoustics
Safety guarding with interlock devices
CE mark, manual and operating handbook
